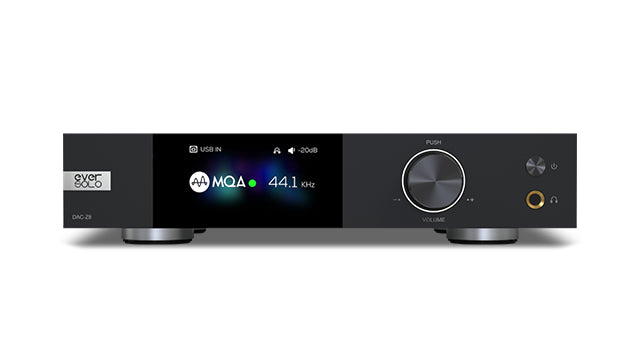

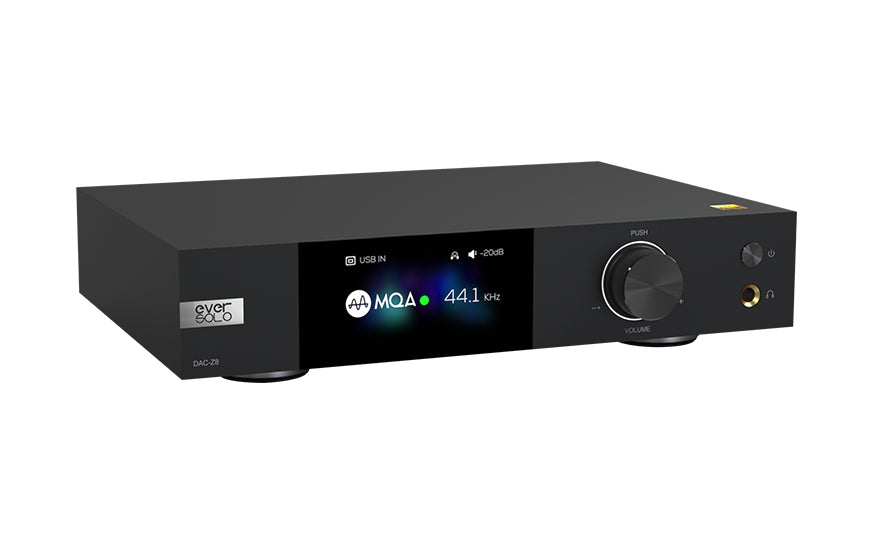

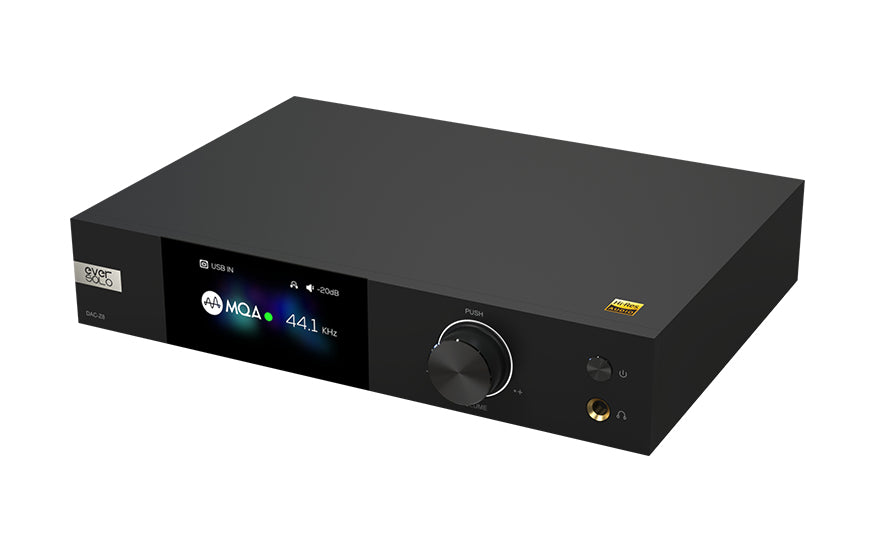

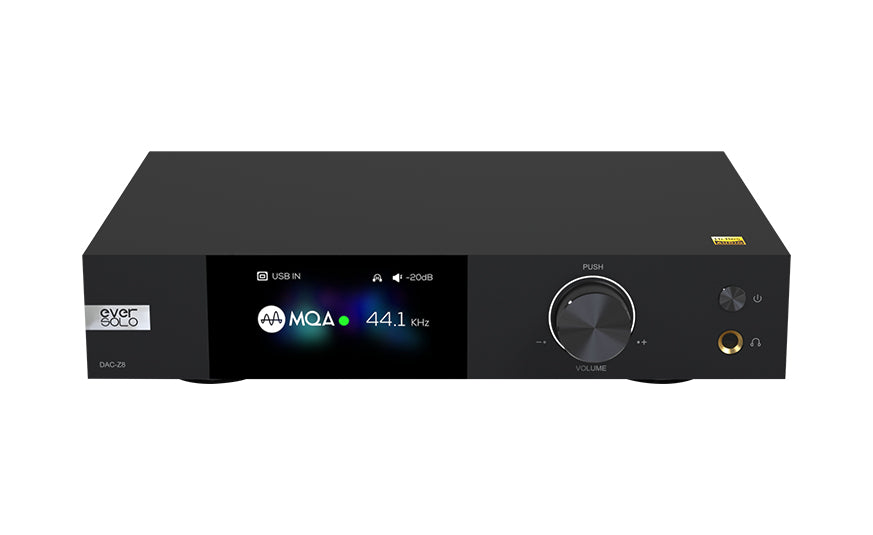

Eversolo HiFi Audio DAC-Z8 Digital to Analog Converter MQA Full Decoder
Eversolo HiFi Audio DAC-Z8 Digital to Analog Converter MQA Full Decoder
Description
DAC-Z8 Digital to Analog Converter MQA Full Decoder
Complete with third integration XMOS 316 processor and ESS flagship ES9038 Pro DAC chips, the DAC-Z8 is a compact audio decoder that delivers exceptional sound quality to any hi-fi system.
Functional overview
- ESS Sabre flagship ES9038Pro 32 bits D\A converter chip.
- The 3rd generation XMOS XU316 with higher performance and faster speed.
- High precision, low jitter dual clock oscillators synchronous processing.
- OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology.
- Up to DSD512 Native, PCM768KHz@32Bit decoding.
- Optical, Coaxial and USB support MQA full decoding and rendering.
- Qualcomm QCC5125 Bluetooth 5.0 module.
- Fully balanced audio architecture, differential amplifier circuit and professional calibration.
- High-performance headphone amp output, 16-300 ohm headphone driver.
- 3-inch LCD screen, with diverse VU meter modes.
- Low ripple power supply to ensure a purer power source.
- Exclusive mobile phone controller APP for global control.
Specs
| Display Screen | 3-inch LCD screen with diverse VU meter modes |
| Chassis | Constructed from aviation-grade aluminum alloy |
| DAC Chip | ESS Sabre ES9038Pro, a flagship 32-bit DAC |
| Audio Processor | 3rd generation XMOS XU316 for enhanced performance |
| Operational Amplifiers | Ten OPA1612 chips in the I/V circuit, utilizing 8-channel shunt compensation technology |
| Clock Oscillators | High-precision, low-jitter dual clock oscillators for synchronous processing |
| PCM Support | Up to 768kHz at 32-bit |
| DSD Support | Up to DSD512 native |
| MQA Support | Full decoding and rendering via optical, coaxial, and USB inputs |
| USB-B and USB-C | Compatible with Windows (7, 10), Mac, Android, and iOS devices |
| Optical and Coaxial | Support up to stereo PCM 192kHz 24-bit, DSD64 DoP, and MQA |
| Bluetooth | Qualcomm QCC5125 Bluetooth 5.0 module supporting SBC, AAC, aptX, aptX LL, aptX HD, and LDAC protocols |
| Analog Outputs | Balanced XLR and unbalanced RCA preamp outputs |
| Headphone Output | 6.35mm single-ended jack, suitable for headphones with impedances between 16Ω and 300Ω |
| Power Supply | Low-noise switching power supply for cleaner audio performance |
| Control Methods | Remote control, mobile app control, and knob control |
| Dimensions | 270mm (W) x 187mm (D) x 50mm (H) |
