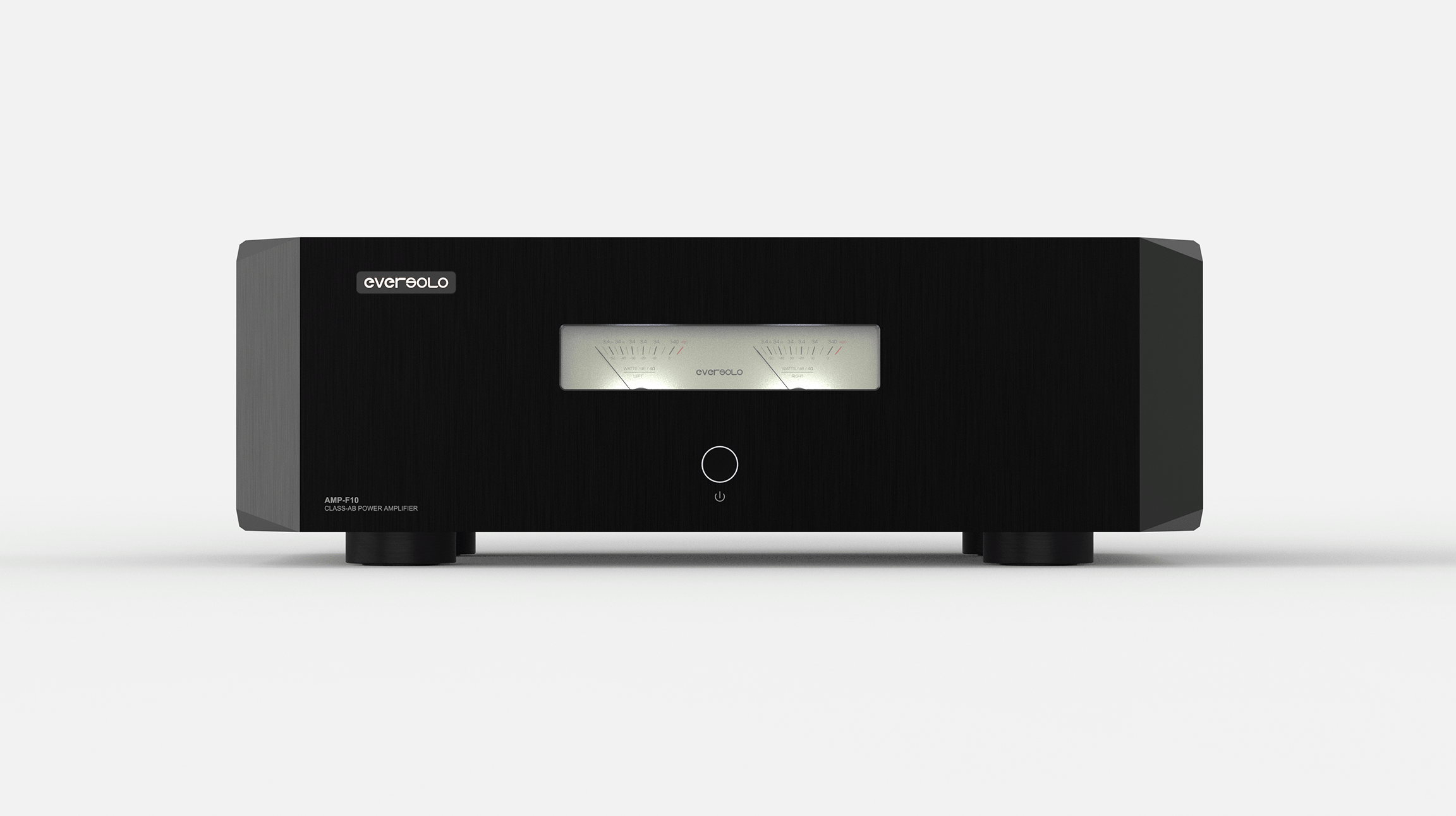

Eversolo AMP-F10 2ch Class AB Power Amplifier
Eversolo AMP-F10 2ch Class AB Power Amplifier
Description

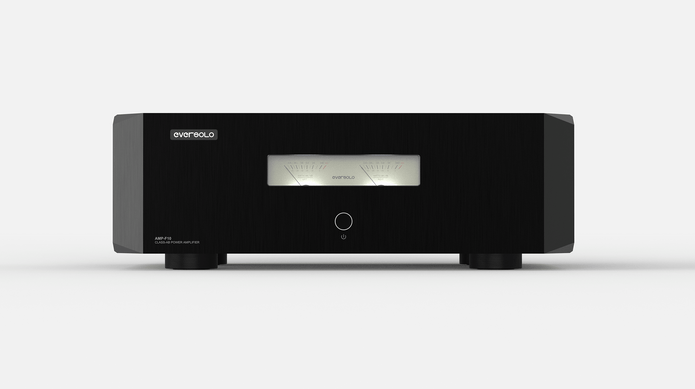

AMP-F10 2ch Class AB Power Amplifier
The Eversolo AMP-F10 delivers up to 950W in bridged mode and 320W per channel at 4 ohms, ensuring powerful performance across all volume levels. Whether you're enjoying stereo sound at home or experiencing the electrifying atmosphere of live music in a large space, the AMP-F10 delivers impressive power that draws you into an unparalleled soundstage.
- At 8 ohms, it can provide 200W of power per channel, and up to 650W in bridged mode.
- At 4 ohms, it can provide 320W of power per channel, and up to 950W in bridged mode.
Functional overview
- 200W RMS at 8Ω
- 320W RMS at 4Ω
- 450W RMS at 2Ω
- 650W RMS at 8Ω (Bridge Mode)
- 950W RMS at 4Ω (Bridge Mode)
- 2 channel Class AB power amplifier
- Bridgeable for mono applications
- Advanced DC Filtering Circuit
- 1000W Dual-Channel Independent Linear Power Supply
- Bridged mode supports 650W @ 8 ohms, 950W @ 4 ohms
- Symmetrical circuit with advanced dual differential amplifiers
- Five pairs of precision-matched MOSFETs per channel
- Large toroidal transformer
- 1000W dual-channel independent linear power supply
- Advanced DC filtering provides clean AC power
- XLR & RCA inputs
Specs
| Power Output | - 200W RMS per channel at 8Ω - 320W RMS per channel at 4Ω - 450W RMS per channel at 2Ω - 650W RMS in bridged mode at 8Ω - 950W RMS in bridged mode at 4Ω |
| Total Harmonic Distortion (THD+N) | 0.01% |
| Signal-to-Noise Ratio (SNR) | - ≥113dB at 23dB gain - ≥110dB at 29dB gain |
| Frequency Response | 10Hz–30kHz ±0.5dB at 8Ω |
| Crosstalk | ≤-95dB at 8Ω, 1kHz |

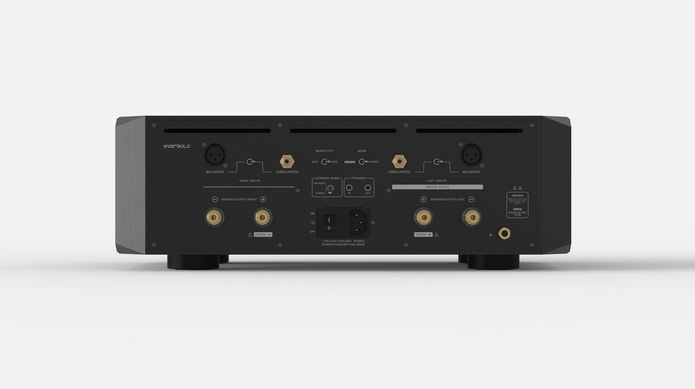

| Inputs | - 1 x Unbalanced RCA - 1 x Balanced XLR |
| Input Impedance | - RCA: 10kΩ - XLR: 10kΩ |
| Input Sensitivity | - RCA: 2.65V (23dB gain), 1.3V (29dB gain) - XLR: 5.2V (23dB gain), 2.4V (29dB gain) |
| Dimensions | 16.9" x 12.2" x 5.8" (430mm x 310mm x 148mm) |
| Weight | 39.7 lbs (18 kg) |

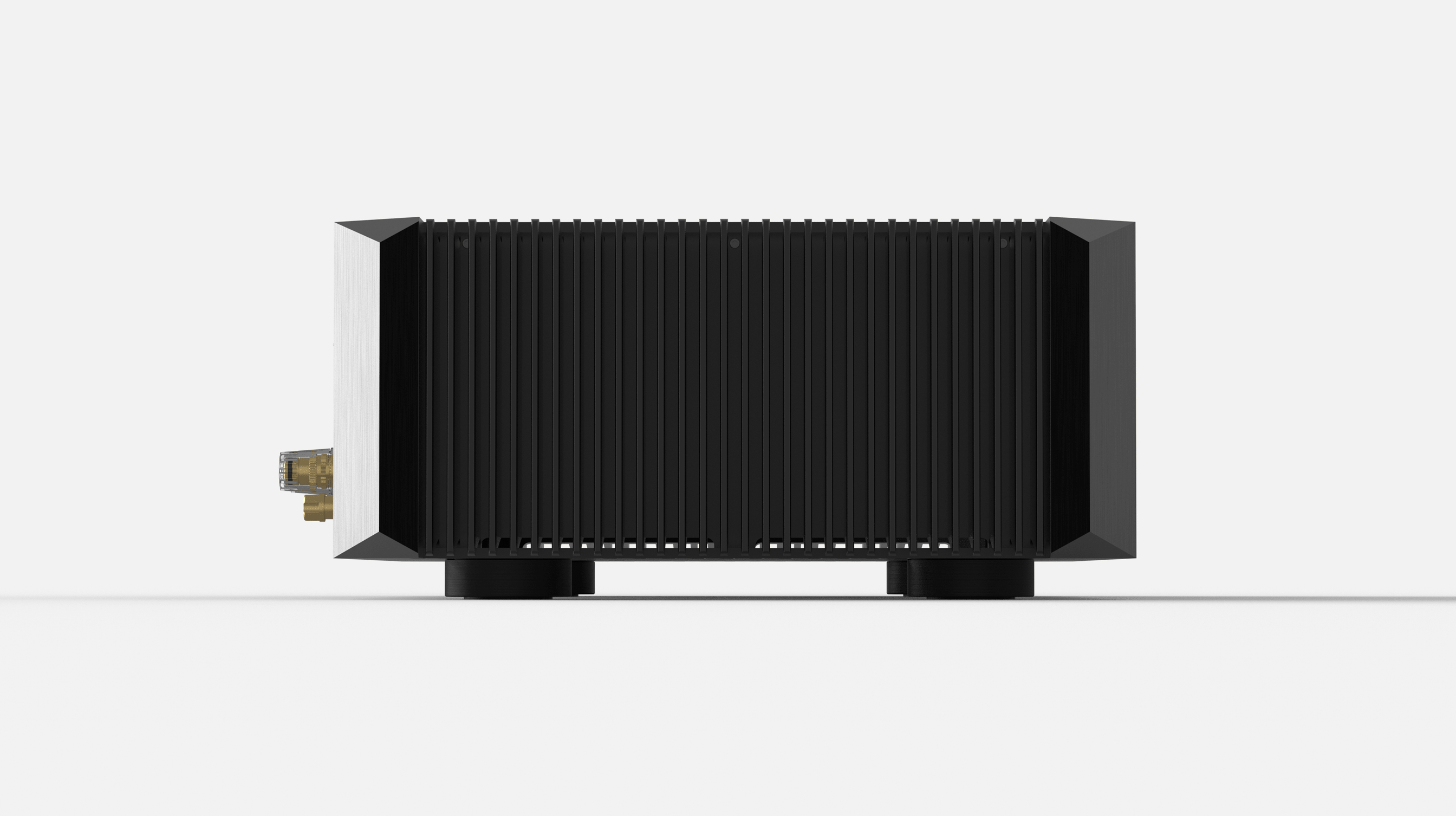

| Cooling | - Dual fan cooling system - Front-to-back airflow |
| Power Supply | - Dual 1000W power supply - Independent channels for balanced stereo sound |
| Amplification Type | - MOSFET amplification with five pairs of high-current MOSFETs per channel |
| Additional Features | - Advanced DC filtering to remove low-frequency interference - Damping factor exceeding 600 for enhanced bass performance |
